X5032B Vertical Keen-Type Milling machine
- group name
- Vertical
- Min Order
- 1 piece
- brand name
- sino cnc machining center
- model
- X5032B
- Nearest port for product export
- shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 16:59:57 GMT
Paramtents
Brand SINO
Three axes Box guideway
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Product Introduction
X5032B
High Rigidity Vertical Keen-type Milling machine
- 7:24 No.50
SPINDLE HOLE TAPER
- 3
AXIS
- 30-1500
RPM
- 18
SPINDLE SPEED STEPS

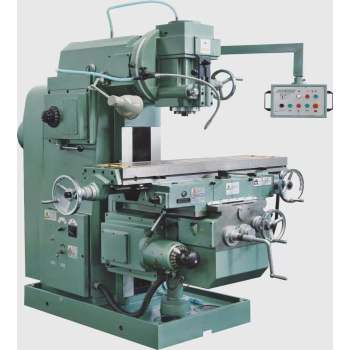

X5032B High Rigidity Vertical Keen-type Milling machine
X5032B vertical knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces.
Equipped with optional accessories, such rotary table and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.
Product Detailed Parameters
Machine Model : X5032B
| Table | Value | Unit |
|---|---|---|
| working size | 1320 x320 | mm |
| Max. load capacity | 500 | kg |
| Travel | Value | Unit |
|---|---|---|
| longitudinal travel (manual / power) X | 800/780 | mm |
| cross travel (manual / power) Y | 300/280 | mm |
| Vertical travel ( manual / power) Z | 410/400 | mm |
| Spindle | Value | Unit |
|---|---|---|
| Spindle hole taper | 7:24 No.50 | |
| Spindle speed | 30-1500 | rpm |
| Feed | Value | Unit |
|---|---|---|
| Rapid traverse rate | 2250/2250/844 | mm/min |
| Moter power | Value | Unit |
|---|---|---|
| Main motor power | 7.5 | Kw |
Product Details Map
Transmission:
Spindle and feed are in hardened gear transmission with 18 grades speed ranges.
Over-load protection clutch:
Over-load protection clutch in spindle and feed transmission. If machine worked over-load, it will stop automatically.
Auto-stop and protective device :
Auto-stop and protective device on feed movement which let operator can change direction easily.
Equipped with trimming handwheel, machine can work in small size processing range.
-
Adjusting wedge:
Adjusting wedge in each guideway to ensure accuracy in long time.
With extra manual lubrication pump, every part can be lubricated sufficiently.
-
Vertical head :
Vertical head can be rotated by ±45°.
The spindle quill can move 75mm.
