VMC1165 heavy cutting cnc machine tools
- group name
- Box Guideway
- Min Order
- 1 piece
- brand name
- sino cnc machining center
- model
- VMC1165
- Nearest port for product export
- shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 18:22:13 GMT
Paramtents
Numerical control FANUC/SIEMENS/MITSUBISHI
Control method Semi-closed loop control
Three axis box guideway
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Product Introduction
VMC1165
Heavy cutting high rigidity machining center
- 50
TAPER
- 3
AXIS
- 6K
RPM
- 24
TOOL CAPACITY

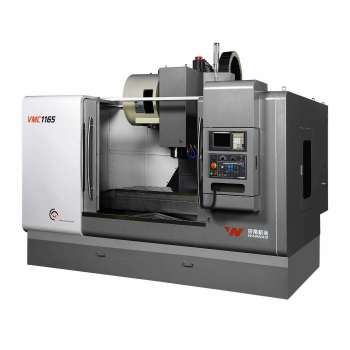

VMC1165 High Rigidity Heavy Cutting Vertical Machining Center
This series CNC machine tools adopt the moving structure of cross sliding table and sliding guide,which is mainly applied in processing of middle and small scale complicated parts.Apply the computeraided engineering(CAE)system to finish the optimized structure design and enhance the reliability of machine tool,and the finite element method(FEM)to take the scientific analysis and optimization of design structure, which can guarantee the rigidity and stability of the whole machine structure.
Product Detailed Parameters
Machine Model : VMC1165
| Table | Value | Unit |
|---|---|---|
| working size | 1300 x 650 | mm |
| Max. load capacity | 1000 | kg |
| Travel | Value | Unit |
|---|---|---|
| X travel | 1100 | mm |
| Y travel | 650 | mm |
| Z travel | 665 | mm |
| Spindle | Value | Unit |
|---|---|---|
| Spindle nose taper | BT40 | |
| Spindle speed (pulley) | 8000 | rpm |
| Feed | Value | Unit |
|---|---|---|
| Rapid traverse rate | 15/15/12 | m/min |
| ATC | Value | Unit |
|---|---|---|
| Number of tools | 24 | T |
Product Details Map
Machine Structure:
X, Y, Z three-axis adopts ultra-wide guide rails, which have excellent rigidity, vibration absorption (suppressing vibration generated when cutting tools) and damping (preventing vibration when the guide system is started or stopped)
Suitable for machine tools with heavy cutting loading
Y axes are supported by 4 guide rails, which has stronger carrying capacity
Spindle :
Taiwan brand BT40-150mm spindle, standard is belt drive 8000rpm. Optional is 10000rpm.
Ultralight spindle headstock and Z axis with counter balance block
Manual Scrape :
Manual scraping is used on the main joint surface to ensure effective contact area and improve the accuracy;
It is also beter for lubrication as oil slick will formed after manual scrape;
Axes Driving :
The 3 axes servo motors are directly connected to the high-precision ball screw via a gapless elastic coupling to ensure transmission accuracy.
All servo motors are equipped with absolute encoders to increase efficiency and reliability.
The three axis screw is pre-stretched to eliminate the influence of screw temperature rise on machining accuracy
Physical Picture
