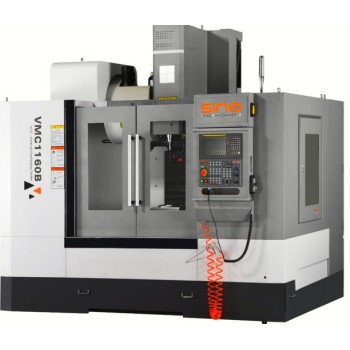

VMC1160B vertical machining center
- group name
- Linear Guideway
- Min Order
- 1 piece
- brand name
- sino cnc machining center
- model
- VMC1160B
- Nearest port for product export
- shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 17:26:31 GMT
Paramtents
Numerical control FANUC/SIEMENS/MITSUBISHI
Control method Semi-closed loop control
Three axis Roller linear guideway
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Product Introduction
VMC1160B
Strong Rigidity High productivity Vertical Machining Center
- 40
TAPER
- 3
AXIS
- 8K
RPM
- 24
TOOL CAPACITY
VMC1160B Strong Rigidity and High productivity Vertical Machining Center
B series is featuring high rigidity, heavy cutting ability and high operability. The strong base column construction has optimally-placed ribs to counter chatter and twisting during heavy cutting. With 3 axes roller linear guideway and wide area motor, this vertical machining center can perform heavy cutting and high speed machining with high torque from low to high speed.
Product Detailed Parameters
Machine Model : VMC1160B
| Table | Value | Unit |
|---|---|---|
| working size | 1300 x 610 | mm |
| Max. load capacity | 1000 | kg |
| Travel | Value | Unit |
|---|---|---|
| X travel | 1100 | mm |
| Y travel | 610 | mm |
| Z travel | 630 | mm |
| Spindle | Value | Unit |
|---|---|---|
| Spindle nose taper | BT40 | |
| Spindle speed (pulley) | 8000 opt.10000 | rpm |
| Feed | Value | Unit |
|---|---|---|
| Rapid traverse rate | 36/36/32 | m/min |
| ATC | Value | Unit |
|---|---|---|
| Number of tools | 24 | T |
Product Details Map
Machine Structure:
Wide machine body span and optimum supporting design can meet with fast feed of X and Y axis
Optimum length design of saddle to ensure moving stability of X axis
Big size of “pyramid” column and with closed inner cavity to ensure low center but high rigidity support of Z axis
Spindle :
Taiwan brand short nose BT40-150mm spindle, standard is belt drive 8000rpm. Optional is 10000rpm. 3 bearings in front end and 2 bearings in rear end
11/15Kw spindle wide are motor with high torque 105Nm
Ultralight spindle headstock and Z axis without counter balance block
Tool Magazine :
Shoulder carrying Taiwan brand tool magazine can ensure Z axis geometric accuracy and perfect stability, rigidity and the minimum shock when column loaded with tool magazine weight
Axes Driving :
THK, REXROTH, PMI, HIWIN 3 axes roller type linear motion guideway 35/45/45(X/Y/Z)
By roller linear contacting, the LM guideway can offer a better rigidity which ensure the fast feed rate and reduce cutting time
Physical Picture
